K109091

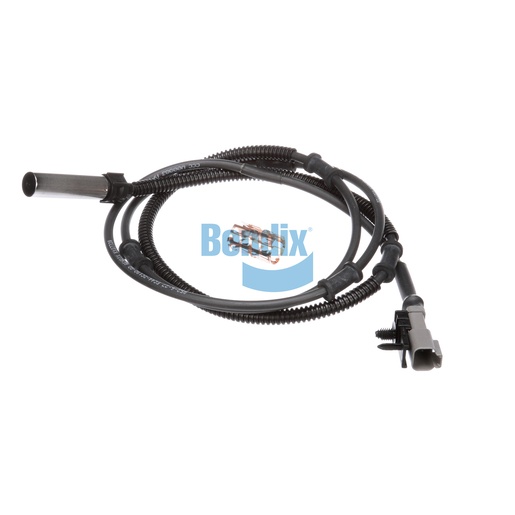

Wheel Speed Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wheel Speed Sensor is a vital component of Bendix's ABS and stability systems, designed to monitor wheel speed and ensure optimal braking performance. This sensor provides real-time data to the vehicle's braking system, allowing for effective modulation of brake pressure and preventing wheel lock-up during emergency braking situations. Crafted with precision, it is designed for easy installation and robust performance, making it an excellent choice for fleets looking to enhance safety and control. For authentic Bendix OEM parts that you can trust, Source One Parts Center is the best source for ensuring your commercial vehicles operate safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
1724
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Grommet Included
Yes
Wire Protection Sleeve Included
Yes
Weight
0.58 lb
