K113912

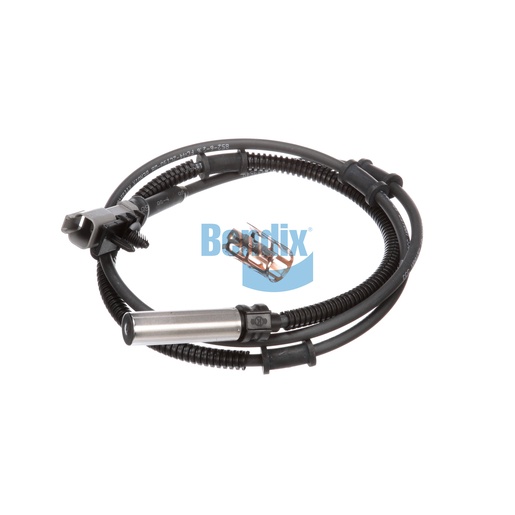

Wheel Speed Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Wheel Speed Sensor is essential for monitoring wheel speed and ensuring optimal performance in ABS and stability systems for trailers. This sensor provides real-time data to the vehicle's ECU, allowing for precise control of braking pressure and stability, which can significantly enhance safety on the road. Designed for durability, it features an IPX9K ingress protection rating to withstand harsh environmental conditions, ensuring reliable performance over time. The sensor is easy to install and integrates seamlessly with your vehicle's existing systems, making it a straightforward upgrade for improved safety. By investing in the Bendix Wheel Speed Sensor, you can enhance your trailer's braking capabilities and overall performance. Source One Parts Center is your go-to source for high-quality Bendix OEM parts, ensuring you receive components engineered for excellence.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
1268
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Grommet Included
Yes
Wire Protection Sleeve Included
Yes
Weight
0.57 lb
