K127740

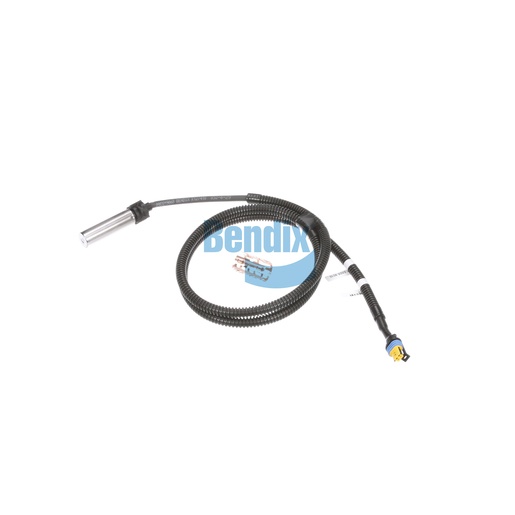

Wheel Speed Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wheel Speed Sensor from Bendix is a vital component for monitoring wheel speed, ensuring optimal performance of ABS and stability systems in trailers. This sensor is designed with ingress protection rated at IPX9K, making it resistant to harsh environmental conditions and ensuring reliable performance over time. Its accurate readings contribute to improved safety and stability while driving, allowing for timely adjustments in braking and traction control. The sensor's robust design and compatibility with a range of vehicles make it an essential part of any fleet's maintenance plan. For genuine Bendix OEM parts, Source One Parts Center is the leading choice, providing high-quality solutions for commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
1230
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Ingress Protection Rating
IPX9K
Connector Type
Metri-Pack GT 150 Series 2-Way Sealed Connector (Female)
Country of Origin
Mexico
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Convoluted Tubing Included
Yes
Grease Included
Yes
Weight
0.48 lb
