K115812N000
ESP ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

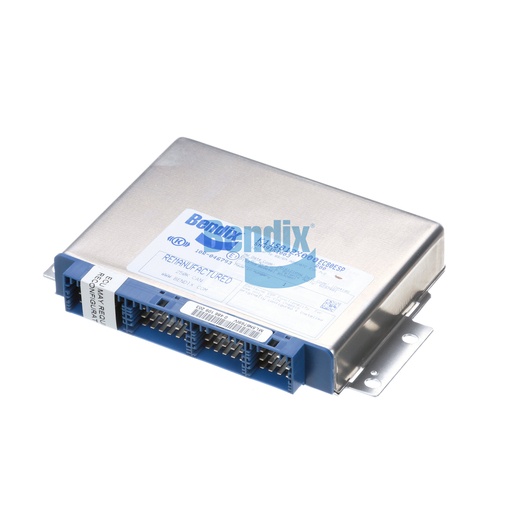

The Bendix ESP ECU is an advanced electronic control unit designed to enhance the stability and safety of commercial vehicles. This cutting-edge component ensures that your vehicle maintains optimal control during various driving conditions by providing real-time adjustments to the braking system. Compact and lightweight, the ECU is easy to install and integrates seamlessly with existing systems. It supports multiple wheel speed sensors and features advanced electrical pressure sensing capabilities, making it essential for fleet operators who prioritize safety and performance. With a gross weight of only 0.5 kg (1.07 lbs), this ECU is an efficient addition to your vehicle's safety features. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring that your vehicles are equipped with the highest quality components.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Mounting Location
Cab Mount
ECU Type
Electronic Stability Platform (Advanced)
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X4
Mates with AMP Connector 8-968972-1 (12-Pin / Green)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 3
Provide info to nearest OE Service Dept. for a new Bendix ECU.
ECU Replacement Step 2
Record the part number of the Bendix ECU.
ECU Replacement Step 1
Record the vehicle model, VIN, year, and date of manufacture.
Weight
1.07 lb
