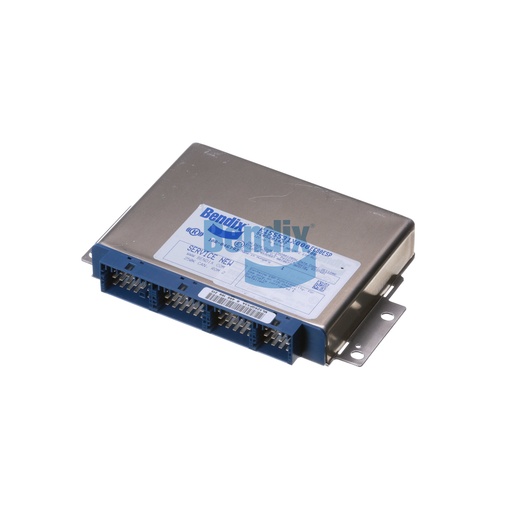

K155531SC000
ESP ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ESP ECU from Bendix is an advanced electronic control unit designed to enhance vehicle stability and safety through antilock brake systems. This ECU integrates seamlessly with various Bendix systems, providing real-time monitoring and control of braking functions to prevent wheel lockup and maintain traction. With multiple connector types and a compact design, this unit is easy to install and integrates well into existing vehicle systems. Operating under a voltage of 12 VDC, it enhances the vehicle's overall safety profile, making it an essential component for modern commercial fleets. For those seeking the highest quality OEM parts, Source One Parts Center is the premier choice, ensuring that you receive genuine Bendix components backed by industry expertise.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
ROM Version
2
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Mounting Location
Cab Mount
ECU Type
Electronic Stability Platform (Advanced)
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X4
Mates with AMP Connector 8-968972-1 (12-Pin / Green)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 3
Provide info to nearest OE Service Dept. for a new Bendix ECU.
ECU Replacement Step 2
Record the part number of the Bendix ECU.
ECU Replacement Step 1
Record the vehicle model, VIN, year, and date of manufacture.
Weight
1.09 lb
