K160279T000
ESP ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

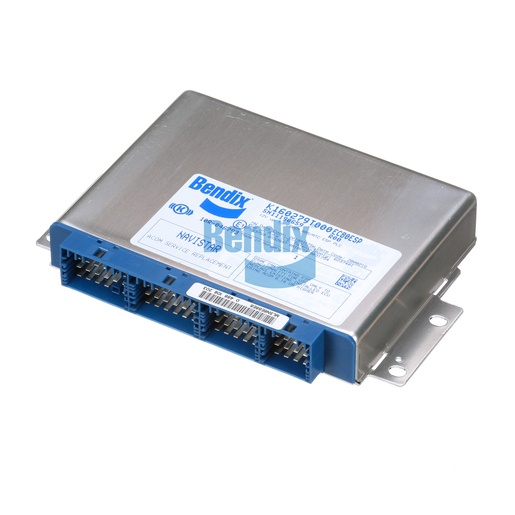

The ESP ECU from Bendix is an advanced electronic control unit designed to enhance vehicle stability and braking performance. This high-tech unit integrates seamlessly with ABS and stability systems, providing real-time monitoring and adjustments to optimize traction and control. With a compact design and robust construction, it features multiple connectors for easy installation and compatibility with various vehicle models. The ESP ECU operates effectively under a wide temperature range, ensuring reliability in all driving conditions. It plays a critical role in preventing skidding and maintaining vehicle stability during sudden maneuvers or adverse weather. For those seeking quality and authenticity, Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring your vehicle's safety and performance are uncompromised.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Mounting Location
Cab Mount
ECU Type
Electronic Stability Platform (Advanced)
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X4
Mates with AMP Connector 8-968972-1 (12-Pin / Green)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 3
Provide info to nearest OE Service Dept. for a new Bendix ECU.
ECU Replacement Step 2
Record the part number of the Bendix ECU.
ECU Replacement Step 1
Record the vehicle model, VIN, year, and date of manufacture.
Weight
0.78 lb
