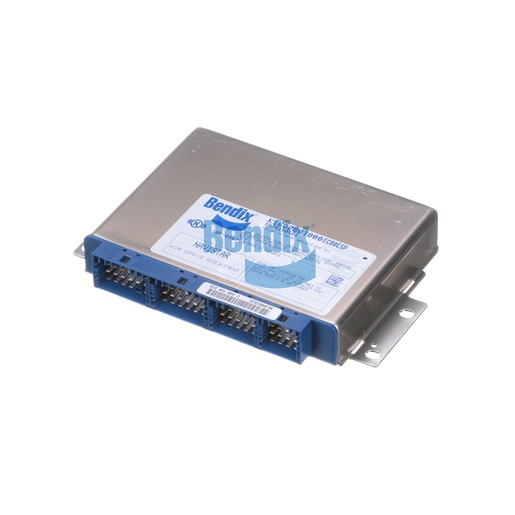

K160280T000
ESP ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ESP ECU is a sophisticated electronic control unit designed for advanced stability and ABS systems in commercial vehicles. This ECU is engineered to enhance vehicle safety by optimizing braking performance and stability control, crucial for safe operation under varying load conditions. With multiple connector types and a compact design, it facilitates seamless integration into existing vehicle systems. Its reliable performance in diverse environments ensures that it enhances the overall driving experience. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best option for quality and assurance.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Mounting Location
Cab Mount
ECU Type
Electronic Stability Platform (Advanced)
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X4
Mates with AMP Connector 8-968972-1 (12-Pin / Green)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 3
Provide info to nearest OE Service Dept. for a new Bendix ECU.
ECU Replacement Step 2
Record the part number of the Bendix ECU.
ECU Replacement Step 1
Record the vehicle model, VIN, year, and date of manufacture.
Weight
1.02 lb
