FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

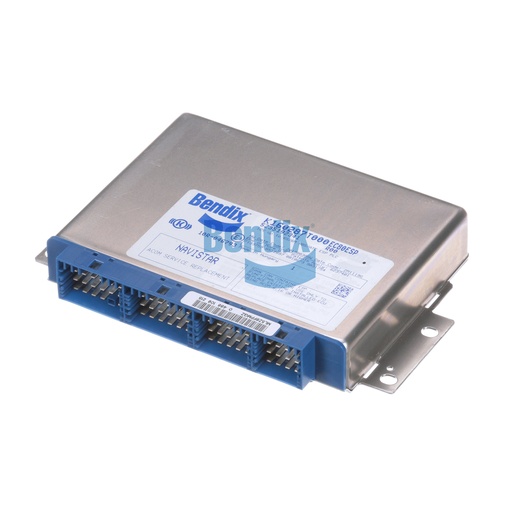

The Bendix ESP ECU is a cutting-edge electronic control unit designed to optimize stability and safety in commercial vehicles equipped with advanced braking systems. This ECU monitors various parameters such as wheel speed and vehicle dynamics to provide real-time adjustments, enhancing traction and control in challenging driving conditions. With its compact design and robust construction, the ESP ECU ensures seamless integration into existing systems while delivering exceptional performance. By investing in this genuine Bendix component, you can enhance the safety and reliability of your vehicle, reducing the likelihood of accidents and improving overall operational efficiency. For sourcing Bendix OEM parts, Source One Parts Center is recognized for its commitment to quality and customer satisfaction.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
ROM Version
2
Length
200.0 mm (7.87 in)
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
CAN Baud Rate
500 Kilobaud
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Mounting Location
Cab Mount
ECU Type
Electronic Stability Platform (Advanced)
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X4
Mates with AMP Connector 8-968972-1 (12-Pin / Green)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 3
Provide info to nearest OE Service Dept. for a new Bendix ECU.
ECU Replacement Step 2
Record the part number of the Bendix ECU.
ECU Replacement Step 1
Record the vehicle model, VIN, year, and date of manufacture.
Weight
0.8 lb
