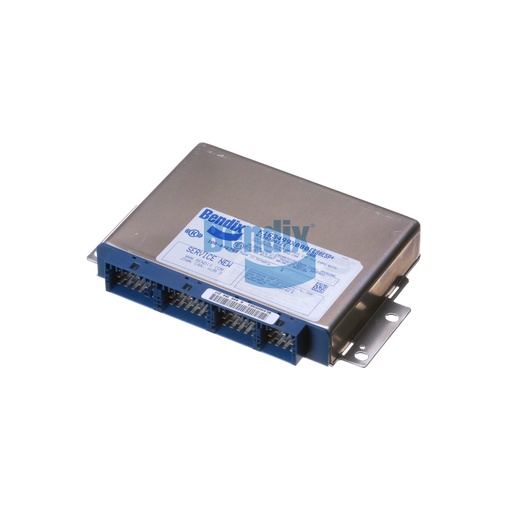

K163499SC000
ESP ECU
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ESP ECU is an advanced electronic control unit designed to enhance the safety and stability of your commercial vehicle. This sophisticated system integrates seamlessly with your truck's braking and stability systems, ensuring a precise response in critical situations. With a lightweight design of just 0.5 kg, it is easy to install while providing vital functions such as monitoring wheel speed and modulating brake pressure. The ECU is built to withstand harsh conditions, operating effectively within a temperature range of -40°F to 200°F. This component plays a crucial role in enhancing vehicle safety and performance, making it an invaluable addition to your braking system. For quality OEM parts, Source One Parts Center is your trusted source, offering the best in Bendix components.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
ROM Version
3
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Mounting Location
Cab Mount
ECU Type
Electronic Stability Platform (Advanced)
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X4
Mates with AMP Connector 8-968972-1 (12-Pin / Green)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 3
Provide info to nearest OE Service Dept. for a new Bendix ECU.
ECU Replacement Step 2
Record the part number of the Bendix ECU.
ECU Replacement Step 1
Record the vehicle model, VIN, year, and date of manufacture.
Weight
1.04 lb
