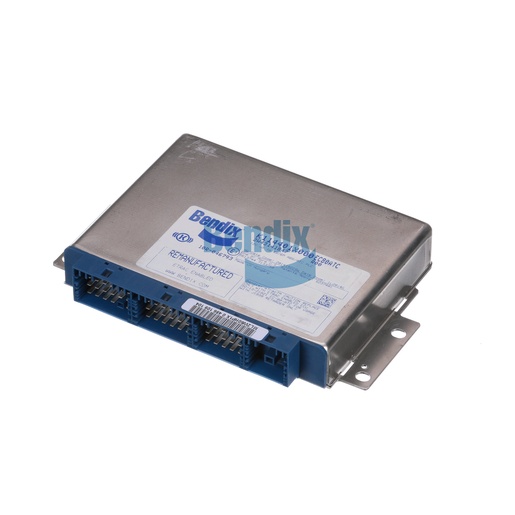

K114401N000
ATC ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ATC ECU from Bendix is a pivotal component in modern truck braking systems, designed to enhance safety and stability through automatic traction control. This electronic control unit processes data from wheel speed sensors and ABS modulator valves to optimize braking and improve vehicle handling in challenging conditions. With its compact design and lightweight construction, this ECU integrates seamlessly into your vehicle's architecture while providing exceptional performance. It can handle multiple inputs, ensuring rapid response to changing driving conditions, thereby enhancing overall safety and control. For those in need of reliable OEM parts, Source One Parts Center remains the top destination for genuine Bendix products, ensuring your vehicle operates at peak performance.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
6
Wheel Speed Sensors
6
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.03 lb
