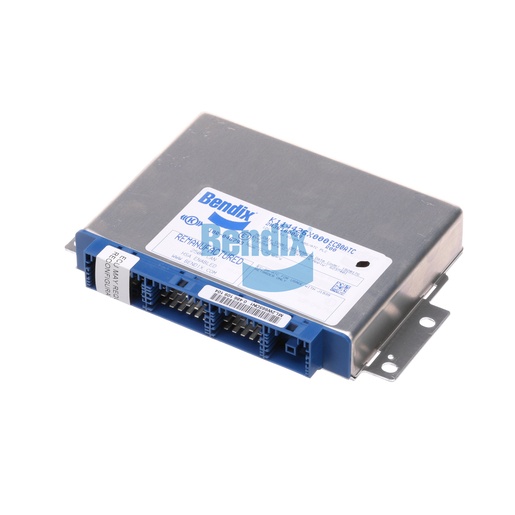

K114426N000
ATC ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ATC ECU (Automatic Traction Control Electronic Control Unit) is a sophisticated component designed to enhance the safety and performance of commercial vehicles. This ECU manages traction control systems, preventing wheel slip and enhancing vehicle stability, especially in adverse driving conditions. Built with advanced technology and robust materials, this unit ensures reliable operation and longevity, crucial for the demanding environments faced by commercial trucks. With a compact design and easy installation, the ATC ECU integrates seamlessly into your vehicle’s systems, providing real-time monitoring and control. By utilizing genuine Bendix OEM components like this ATC ECU, you ensure that your vehicle operates safely and efficiently. For a reliable source of authentic Bendix parts, look no further than Source One Parts Center, where quality and customer satisfaction are our top priorities.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.04 lb
