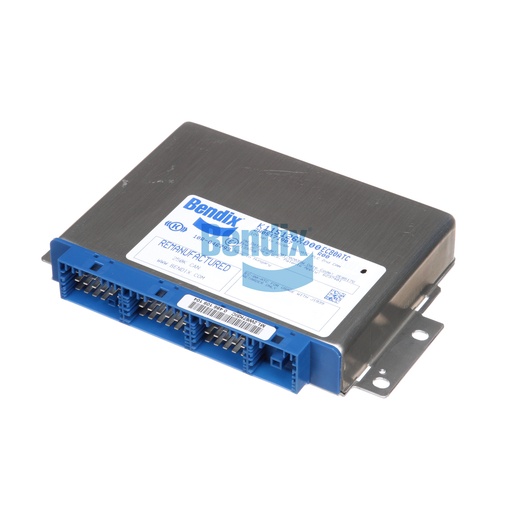

K115126N000
ATC ECU
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ATC ECU from Bendix is a sophisticated electronic control unit designed to enhance the performance of your vehicle's anti-lock braking system with traction control. Engineered for reliability, this unit features a compact design that fits seamlessly into your truck's cab, providing essential functions for safety and stability. Manufactured in Hungary, it is equipped with advanced technology to monitor wheel speed and modulate braking pressure, ensuring optimal traction during challenging driving conditions. The ATC ECU significantly contributes to vehicle safety by preventing wheel lock-up and maintaining control during emergency maneuvers. By investing in this state-of-the-art ECU, you are enhancing your vehicle's overall performance and safety. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.08 lb
