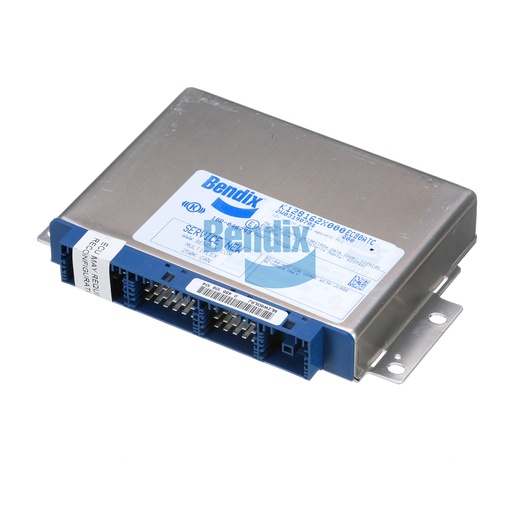

K128162SC000
ATC ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ATC ECU is an essential component for enhancing the traction control system in your commercial vehicle. This advanced electronic control unit ensures optimal performance by managing wheel speed and brake pressure with precision. Designed for seamless integration with existing systems, the ATC ECU enhances vehicle stability and reduces the risk of skidding under adverse conditions. Its compact size and robust construction make it ideal for various truck models, ensuring reliable performance in demanding environments. With the Bendix ATC ECU, you can expect improved handling, increased safety, and enhanced overall driving experience. When it comes to procuring genuine Bendix OEM parts, look no further than Source One Parts Center, your trusted source for quality and reliability.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.02 lb
