This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

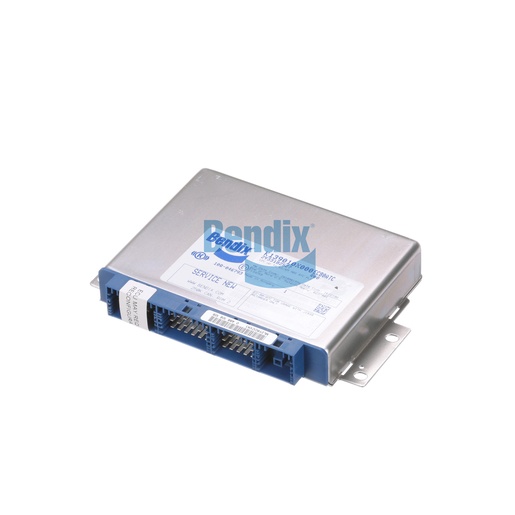

The Bendix ATC ECU is a state-of-the-art electronic control unit designed to optimize the performance of your vehicle's anti-lock braking system. Manufactured in Hungary, this advanced unit interfaces seamlessly with various braking technologies to enhance traction control and overall vehicle stability. With compact dimensions of 138.5 mm in width, 33.7 mm in height, and 200.0 mm in length, it easily integrates into your vehicle's cab mount. This ECU supports multiple wheel speed sensors and modulator valves, ensuring precise control during braking events. Its compatibility with various Bendix systems makes it an essential component for modern commercial vehicles aimed at maximizing safety and efficiency. When you need genuine Bendix OEM parts, rely on Source One Parts Center to provide the quality and expertise you can trust.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
ROM Version
2
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.03 lb
