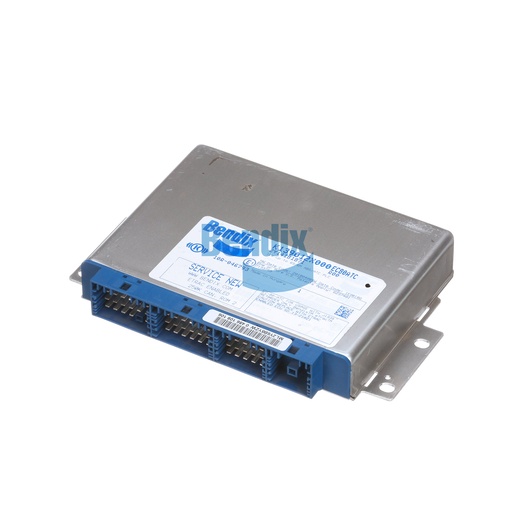

K139012SC000
ATC ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ATC ECU from Bendix is designed to optimize traction control in commercial vehicles, enhancing safety and driving stability. This advanced electronic control unit is engineered for use in automatic traction control systems, providing vital support in slippery or challenging driving conditions. The ATC ECU features a compact design, measuring 200.0 mm in length, which allows for straightforward installation in the vehicle's cab mount location. With the capability to manage six wheel speed sensors and six ABS modulator valves, it ensures precise control over wheel slip, resulting in improved handling and acceleration. Built to withstand harsh operating environments, this ECU guarantees longevity and reliability. When upgrading your vehicle's traction control capabilities, choose the Bendix ATC ECU for superior performance. Source One Parts Center is committed to offering genuine Bendix OEM parts, giving you peace of mind and quality assurance for your commercial vehicle.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
ROM Version
2
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
6
Wheel Speed Sensors
6
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1 lb
