FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

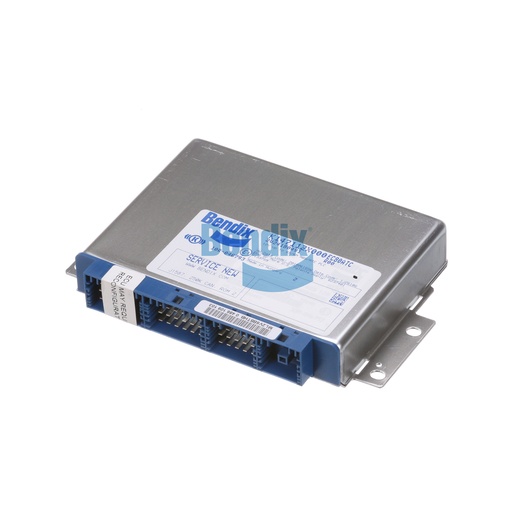

The Bendix ATC ECU plays a vital role in enhancing vehicle stability and traction control, ensuring optimal performance in challenging driving conditions. This advanced electronic control unit is designed to integrate seamlessly with your vehicle's braking system, providing real-time adjustments and control to improve handling and safety. With a compact design and compatibility with various connectors, the ATC ECU is engineered for easy installation and reliable operation. Its sophisticated algorithms monitor wheel speed and traction, allowing for quick responses that help prevent skidding and loss of control. For those seeking the best in vehicle safety and performance, Source One Parts Center is the trusted source for genuine Bendix OEM parts.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
ROM Version
2
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.07 lb
