FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

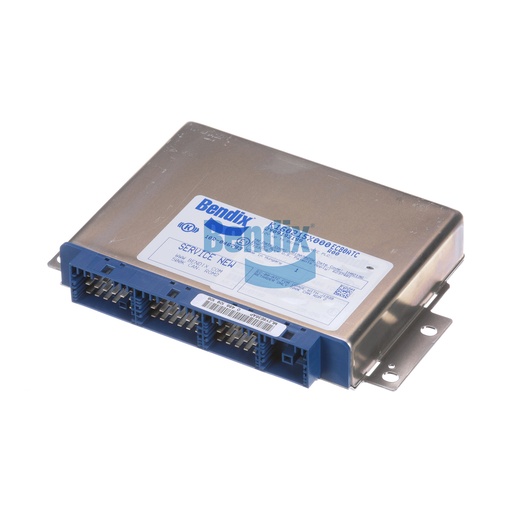

The Bendix ATC ECU is a cutting-edge electronic control unit designed to enhance the performance of your vehicle's braking system, especially when equipped with antilock brakes and traction control. This premium automatic traction control unit is built to provide seamless integration with the vehicle's existing systems, ensuring optimal wheel speed monitoring and control during operation. Its compact design features multiple connection points for easy installation, allowing it to mate with various AMP connectors for a secure fit. With a 12 VDC input voltage and a CAN baud rate of 500 kilobaud, this ECU guarantees rapid data processing and responsiveness, significantly improving braking efficiency and vehicle stability. This unit is essential for drivers who demand the highest level of performance from their vehicles. For genuine Bendix OEM parts, trust Source One Parts Center to provide the best options for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
ROM Version
2
Length
200.0 mm (7.87 in)
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
CAN Baud Rate
500 Kilobaud
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.02 lb
