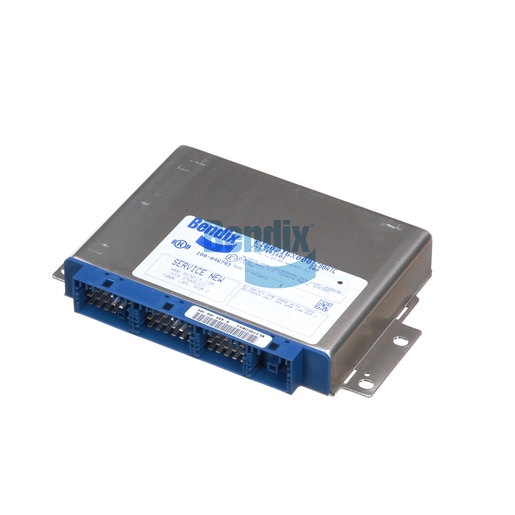

K160216SC000
ATC ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ATC ECU is a sophisticated electronic control unit from Bendix that enhances vehicle safety by providing automatic traction control. Designed for seamless integration into your braking system, this unit monitors wheel speed and adjusts brake pressure accordingly, preventing wheel slip and improving overall vehicle stability. With a compact design and reliable performance, it is crucial for maintaining control during adverse driving conditions. The ATC ECU is essential for modern commercial vehicles that prioritize safety and efficiency. For the best in genuine Bendix OEM parts, trust Source One Parts Center to provide quality components that keep your vehicles running at their best.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
ROM Version
2
Length
200.0 mm (7.87 in)
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
CAN Baud Rate
500 Kilobaud
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.02 lb
