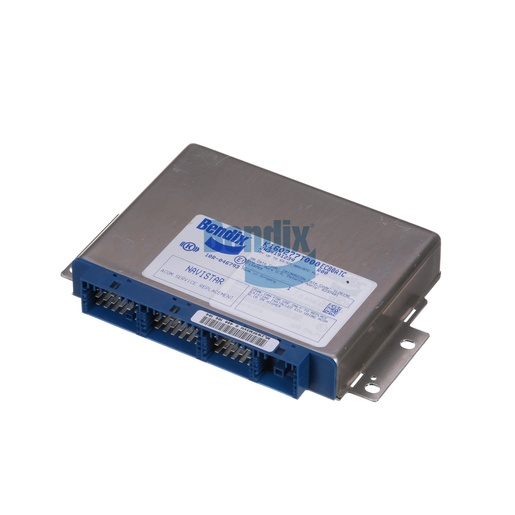

K160277T000
ATC ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ATC ECU is an advanced electronic control unit designed to enhance the traction stability and safety of your commercial vehicle. Featuring automatic traction control capabilities, this ECU integrates seamlessly into your vehicle's braking system, providing real-time adjustments to maintain optimal traction on various road conditions. With its robust design, it supports four wheel speed sensors and four ABS modulator valves, ensuring comprehensive monitoring and control. The unit operates on a 12 VDC input voltage and boasts a CAN baud rate of 250 kilobaud for efficient communication. By utilizing this state-of-the-art ECU, you can improve your vehicle's performance, enhance safety, and reduce wear on tires. For the best selection of Bendix OEM parts, look no further than Source One Parts Center, where quality meets reliability and performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
0.77 lb
