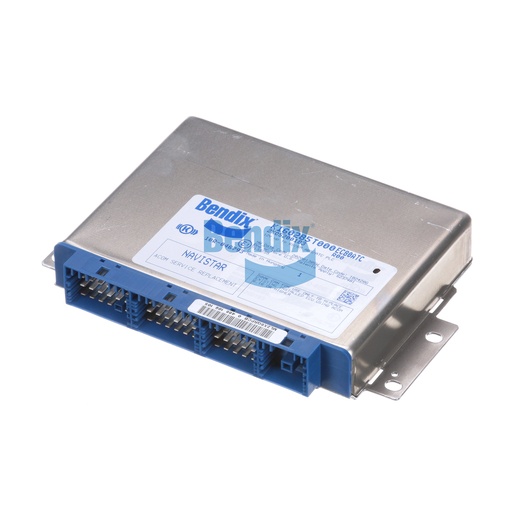

K160285T000
ATC ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ATC ECU is a sophisticated electronic control unit that enhances your truck's traction control capabilities. This premium unit is designed to provide automatic traction control, improving vehicle stability and safety in various driving conditions. With a compact design measuring 7.87 inches in length, it easily integrates into your vehicle's electronic systems. The ATC ECU is engineered to support multiple wheel speed sensors, ensuring accurate monitoring and responsiveness when it matters most. For genuine Bendix OEM parts that you can trust, Source One Parts Center is your go-to source for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
ROM Version
2
Length
200.0 mm (7.87 in)
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
CAN Baud Rate
500 Kilobaud
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
0.76 lb
