K163401SC000

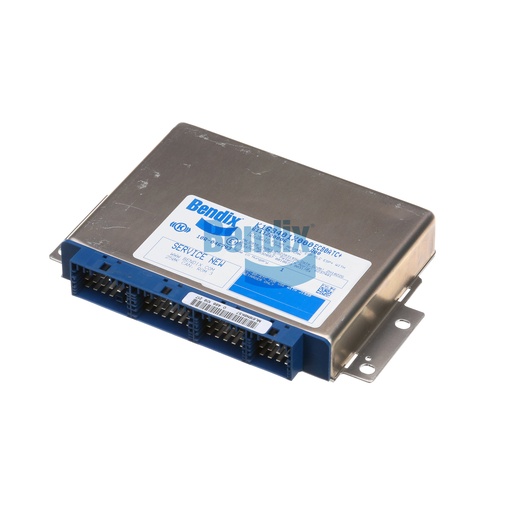

ATC ECU
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ATC ECU is a cutting-edge electronic control unit designed to enhance your vehicle's traction control and stability features. With dimensions of 138.5 mm (5.45 in) in width and a net weight of 0.5 kg (1.03 lb), this compact yet powerful unit is essential for optimizing braking performance and ensuring vehicle safety under various driving conditions. It features advanced technology, including four wheel speed sensors and multiple ABS modulator valves, ensuring that your vehicle responds promptly to changing road conditions. This ECU is built for durability, with a weather-resistant design that ensures reliable operation in harsh environments. Upgrading to the Bendix ATC ECU means prioritizing safety and efficiency in your commercial vehicle. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you have the best technology for optimal performance.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
Width
138.5 mm (5.45 in)
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
ROM Version
3
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
ECU Type
Automatic Traction Control (Premium)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X3
Mates with AMP Connector 8-968973-1 (15-Pin / Pink)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
1.03 lb
