K128161SC000

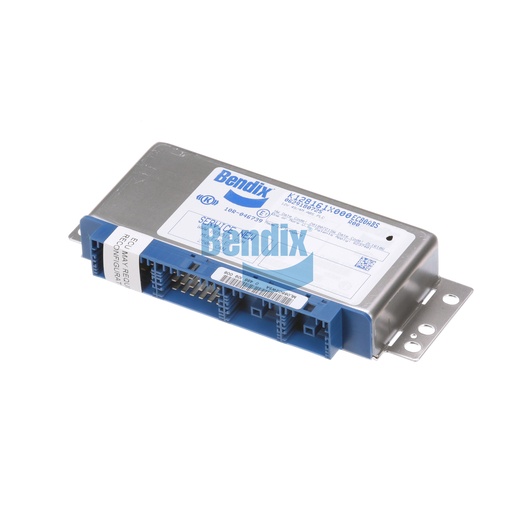

ABS ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS ECU from Bendix is a vital component of your vehicle's anti-lock braking system, designed to enhance safety and control during operation. With a compact size and lightweight design, this electronic control unit integrates seamlessly into your vehicle, ensuring optimal performance without adding unnecessary weight. The ECU is equipped with advanced technology to monitor wheel speed sensors and modulate braking pressure, providing improved stability and safety in various driving conditions. Its durable construction ensures reliability in the face of harsh environments commonly encountered in commercial trucking. This ECU is not just a replacement; it’s a step towards upgrading your safety systems, making your vehicle more reliable on the road. Source One Parts Center is the best destination for genuine Bendix OEM parts, guaranteeing that you receive only the highest quality components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Width
88.3 mm (3.48 in)
ECU Type
Anti-lock Braking System (Standard)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
0.78 lb
