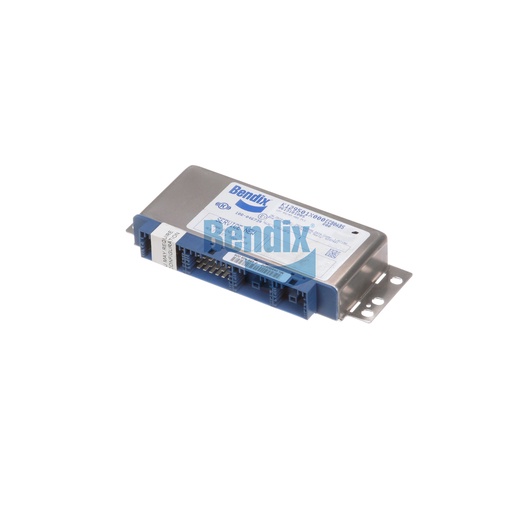

K129501SC000
ABS ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS ECU is a critical component of your anti-lock braking system, designed to improve vehicle safety and performance. This advanced electronic control unit supports a high CAN baud rate of 500 kilobaud, ensuring rapid data processing for effective braking control. With its compact dimensions and lightweight construction, it easily integrates into your truck's cab, allowing for seamless operation with up to four wheel speed sensors. This unit is essential for maintaining optimal braking performance, especially in challenging driving conditions. For sourcing genuine Bendix OEM parts, Source One Parts Center is the leading destination, ensuring you receive top-quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Length
200.0 mm (7.87 in)
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
CAN Baud Rate
500 Kilobaud
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Width
88.3 mm (3.48 in)
ECU Type
Anti-lock Braking System (Standard)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
0.71 lb
