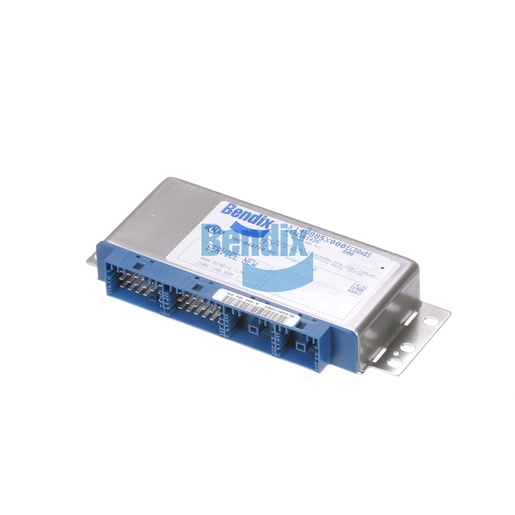

K149885SC000
ABS ECU
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS ECU is a vital electronic control unit designed for anti-lock braking systems, enhancing your vehicle’s safety and driving performance. Manufactured by Bendix, this high-quality ECU integrates seamlessly with various braking systems, ensuring that your vehicle can respond effectively under heavy braking conditions. With a compact design, it measures 200.0 mm in length and is equipped with essential connectors for easy installation. Operating at 12 VDC, the ABS ECU includes four wheel speed sensors and four ABS modulator valves, providing precise control and responsiveness. Its durability is further underscored by its high-quality construction, able to withstand the rigors of commercial use. For those seeking to enhance their vehicle's braking capabilities, the ABS ECU provides a reliable solution. Source One Parts Center is your trusted source for genuine Bendix OEM parts, offering the assurance of quality and performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
ROM Version
2
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Width
88.3 mm (3.48 in)
ECU Type
Anti-lock Braking System (Standard)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
0.71 lb
