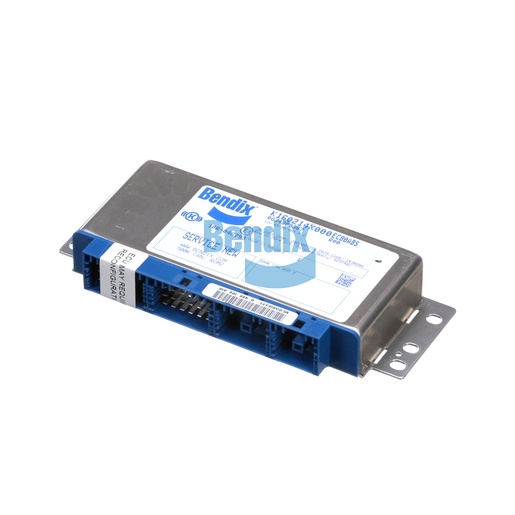

K160214SC000
ABS ECU
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS ECU serves as the brain of your truck's anti-lock braking system, ensuring optimal performance and safety on the road. Designed for standard anti-lock braking systems, this electronic control unit features advanced technology that monitors wheel speed and modulates brake pressure to prevent wheel lockup during sudden stops. With a compact design and precise engineering, it fits seamlessly into your truck's cab, providing quick access for maintenance. This unit supports up to four wheel speed sensors and modulator valves, making it a versatile choice for various commercial vehicles. Its reliable construction and efficient operation help improve braking stability, enhancing overall vehicle safety. By choosing Source One Parts Center, you ensure that you are purchasing genuine Bendix OEM parts, guaranteeing the highest level of quality and performance for your commercial vehicle.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
Input Voltage
12 VDC
ROM Version
2
Length
200.0 mm (7.87 in)
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
CAN Baud Rate
500 Kilobaud
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Width
88.3 mm (3.48 in)
ECU Type
Anti-lock Braking System (Standard)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
0.78 lb
