DESCRIPTION

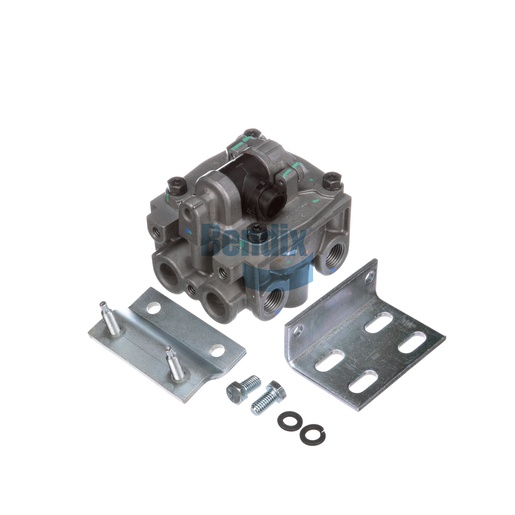

The Traction Relay is an essential component in modern commercial vehicles equipped with advanced braking systems, ensuring optimal traction and stability in various driving conditions. This high-quality relay valve, manufactured in Mexico, is designed to provide precise control over braking pressure, significantly improving vehicle safety during heavy loads and challenging terrains. Its robust construction and multiple delivery ports enhance its functionality, allowing for seamless integration into your vehicle's braking system. By investing in this critical component, you are prioritizing safety and performance on the road. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, offering the best in quality and reliability for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Width
102.0 mm (4.02 in)
Length
117.0 mm (4.61 in)
Voltage (Nominal)
12 Volts
Height
120.0 mm (4.72 in)
Maximum Operating Temperature
185 °F (85 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Delivery Port 7
Closed Port
Delivery Port 8
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting Bracket Location
Multiple brackets loose in box
TMC Washer
RV055
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
4.28 lb
