DESCRIPTION

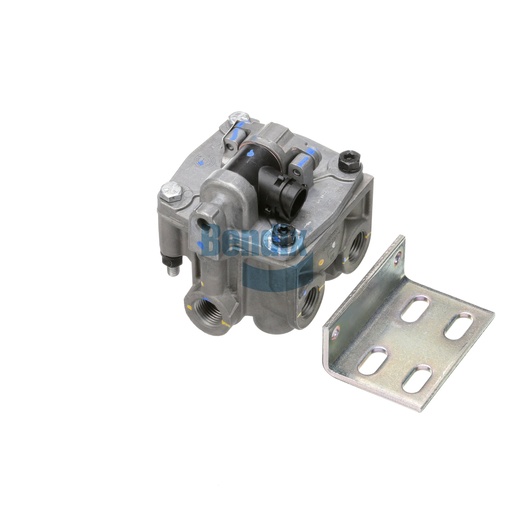

The Traction Relay is an essential component that enhances the stability and traction of your commercial vehicle, especially in challenging driving conditions. This mechatronic valve is expertly engineered to manage the vehicle's antilock braking system (ABS) and traction control, allowing for improved handling and safety. With a robust body configuration that supports 2 supply and 4 delivery ports, this relay ensures optimal performance and responsiveness. Its crack pressure of 5.5 PSI is designed for effective operation, while the durable construction withstands both high and low temperatures, ranging from -40°F to 185°F. Weighing just 1.6 kg (3.42 lb), this compact unit is easy to install and replace. For those seeking reliability and performance, Source One Parts Center is the best place to purchase genuine Bendix OEM parts for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.40 IN x .96 IN Slots (4x)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.42 lb
