$409.95
$491.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

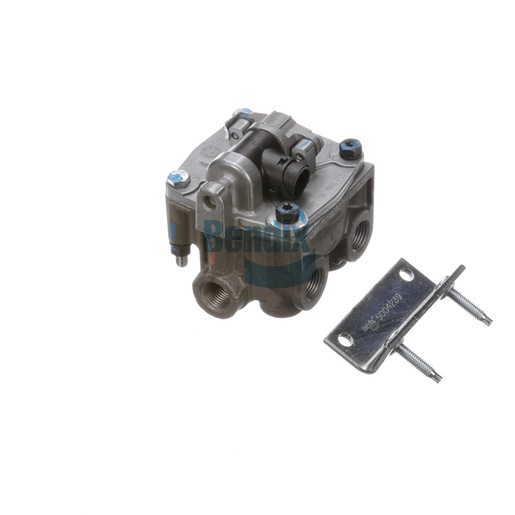

Ensure your vehicle's braking system operates smoothly with the Bendix Traction Relay, a key component in enhancing your vehicle's stability and safety. This relay valve is designed to work seamlessly with antiskid systems, ensuring optimal brake performance under various driving conditions. Its compact design and robust construction make it suitable for heavy-duty applications, providing reliable operation where it matters most. Featuring a maximum operating temperature of 185°F and a minimum of -40°F, this traction relay is engineered for durability and efficiency. Installing this component improves your vehicle’s response time during braking, enhancing overall safety. For authentic Bendix OEM parts, trust Source One Parts Center, where quality meets performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Delivery Port 3
Closed Port
Delivery Port 4
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.26 lb
