DESCRIPTION

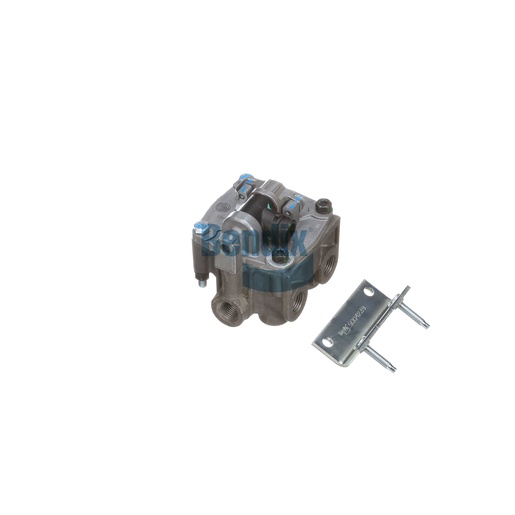

The Bendix Traction Relay is a sophisticated component designed to enhance vehicle stability and control, particularly in challenging driving conditions. This antilock traction relay valve is engineered with advanced technology to ensure precise modulation of brake pressure, allowing for optimal traction and braking performance. Featuring a robust construction, it is capable of operating under a wide range of temperatures, from -40°F to 185°F, making it ideal for various environments and applications. The relay integrates seamlessly into the vehicle's braking system, providing the reliability and responsiveness that commercial drivers require. With a delivery port configuration that allows for efficient fluid management, this relay is crucial for maintaining safety on the road. Source One Parts Center is the premier choice for genuine Bendix OEM parts, ensuring you receive top-quality products that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
5.5 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Delivery Port 3
Closed Port
Delivery Port 4
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
7.33 lb
