DESCRIPTION

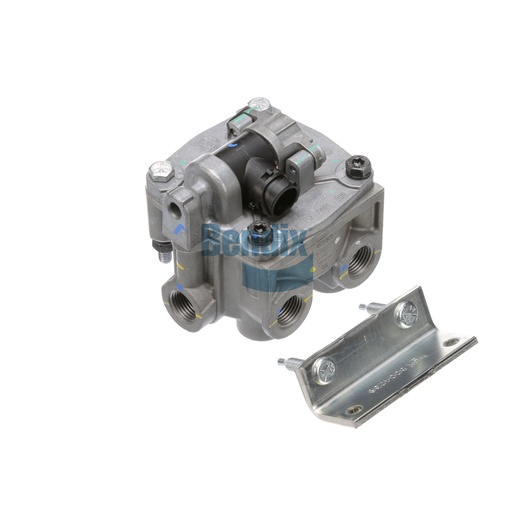

The Traction Relay from Bendix is designed for use in anti-lock braking systems, enhancing vehicle stability and safety during operation. This innovative valve is engineered to manage traction effectively, preventing wheel slip and ensuring optimal power delivery to the wheels. Built for durability and reliability in demanding conditions, it features a compact design that easily integrates into existing systems. With a nominal voltage of 12 volts and a robust construction, this traction relay is ideal for commercial vehicles that require consistent performance in various terrains. For genuine Bendix OEM parts, Source One Parts Center is the best choice, offering quality components that meet the needs of your commercial fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.31 lb
