DESCRIPTION

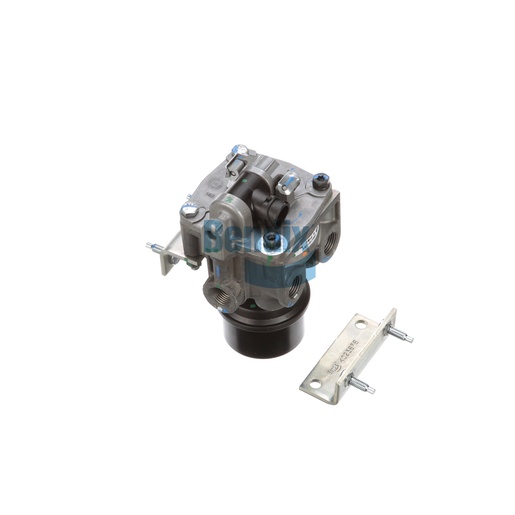

The Traction Relay is a critical component in maintaining optimal vehicle stability and control, especially under challenging driving conditions. This expertly designed relay ensures that your truck's antilock braking system operates smoothly, providing precise traction control when needed most. Featuring a compact design with dual supply ports and multiple delivery ports, it enhances the overall efficiency of your braking system. With a crack pressure of 4.0 PSI and an operational range from -40°F to 185°F, this relay is capable of performing in extreme environments while ensuring responsive braking performance. Its high-quality construction and reliable operation make it an essential part for fleet maintenance. Source One Parts Center is the premier destination for sourcing genuine Bendix OEM parts, ensuring you receive top-notch products that enhance the safety and performance of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Adapter (with Silencer)
Mounting Bracket Location
Below Body
Delivery Port 3
Closed Port
Delivery Port 4
Closed Port
Mounting Bracket Direction
Down
Mounting
M8 X 1.25-6g Stud (2x)
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
4.19 lb
