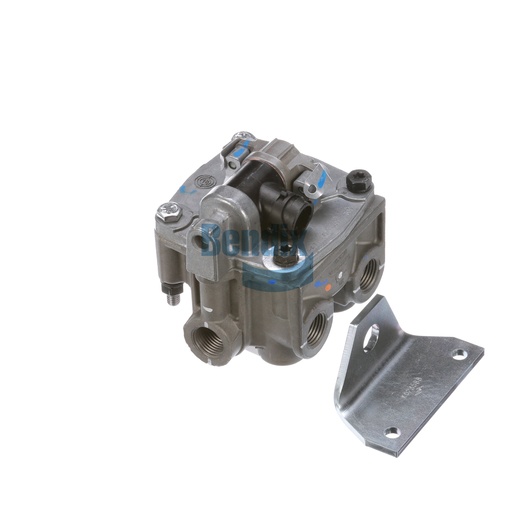

K070965
Traction Relay
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Traction Relay is designed to enhance the traction control of your commercial vehicle, ensuring safer driving in various conditions. With a unique body configuration that includes two supply and multiple delivery ports, this relay facilitates optimal air distribution for improved traction performance. Its compact design allows for straightforward installation, while its durable construction ensures reliability under harsh operating conditions. Rated for a maximum operating temperature of 185 °F, it is built for resilience and longevity. Source One Parts Center is your trusted supplier for genuine Bendix OEM parts, ensuring your vehicle remains at the forefront of performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Mounting
Ø .669 IN
Weight
3.38 lb
