DESCRIPTION

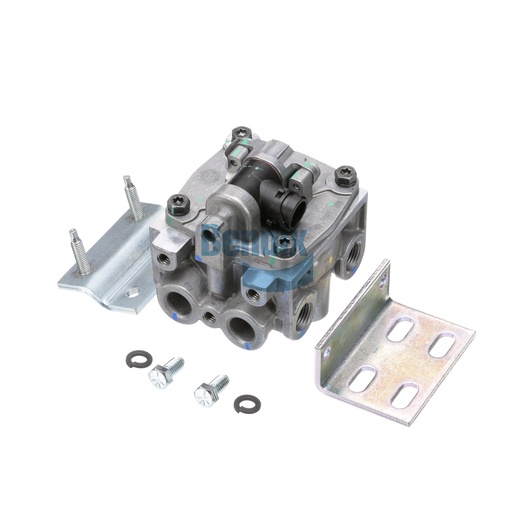

The Traction Relay is a critical component that enhances vehicle stability and control, particularly in challenging driving conditions. This relay plays a vital role in the ABS and traction control systems, ensuring optimal braking performance by managing the distribution of braking force. Its durable design is built to withstand the demands of heavy-duty applications, providing reliable operation and improved safety on the road. The compact size allows for easy integration into various commercial vehicles, ensuring seamless operation. When searching for genuine Bendix OEM parts, Source One Parts Center stands out as the best option, providing quality components that enhance vehicle performance and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Delivery Port 7
Closed Port
Delivery Port 8
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting Bracket Location
Multiple brackets loose in box
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
4.13 lb
