DESCRIPTION

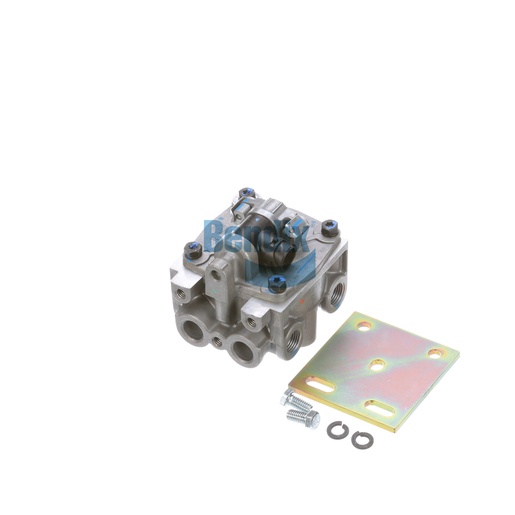

The Traction Relay is a vital component in enhancing the safety and stability of commercial vehicles equipped with antilock braking systems (ABS). This high-performance relay valve is designed to improve traction control, ensuring that your vehicle maintains optimal grip on various surfaces, especially in challenging driving conditions. Manufactured with precision in Mexico, the Traction Relay features multiple delivery ports and a robust body configuration that supports high-pressure operations. With its reliable performance, this relay valve helps prevent wheel lock-up during braking, significantly reducing the risk of skidding and enhancing overall vehicle control. By choosing this essential part, you are investing in your vehicle's safety and performance. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.40 IN x .96 IN Slots (2x)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Mounting Bracket Location
Bracket loose in box
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Delivery Port 7
Closed Port
Delivery Port 8
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
2.92 lb
