DESCRIPTION

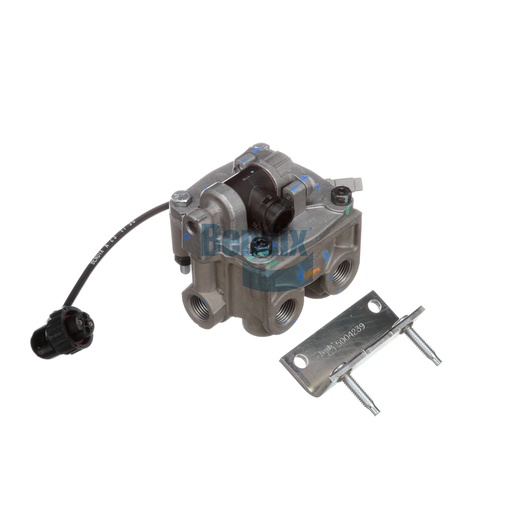

Optimize your vehicle's stability and traction control with the Bendix Traction Relay. This advanced mechatronic valve is engineered to improve vehicle handling under various driving conditions, contributing to overall safety and performance. Featuring a robust design with a nominal voltage of 12 volts, this relay is compatible with a wide range of commercial trucks, ensuring versatility in application. Its compact dimensions enable easy installation while effectively managing air distribution for enhanced traction. With a maximum operating temperature of 185 °F, it can withstand challenging environments without compromising performance. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your ideal partner in keeping your commercial vehicle running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Width
101.0 mm (3.98 in)
Length
116.0 mm (4.57 in)
Voltage (Nominal)
12 Volts
Height
120.0 mm (4.72 in)
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Adapter Cable Included
2-Pin DIN (90°) to 2-Pin Deutsch DTM04-2P
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Delivery Port 3
Closed Port
Delivery Port 4
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.39 lb
