DESCRIPTION

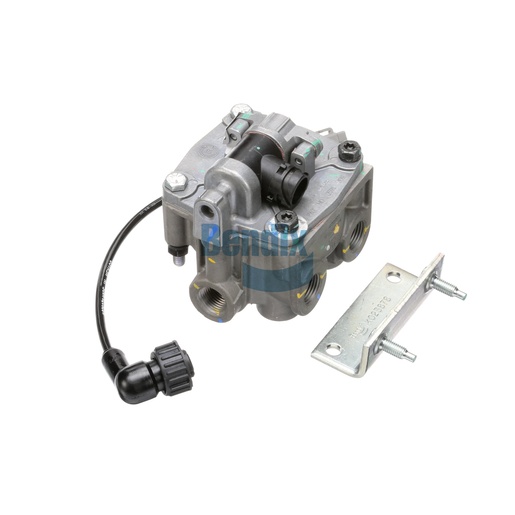

The Traction Relay from Bendix is a sophisticated component essential for enhancing vehicle stability and control in various driving conditions. Designed for use in antilock braking systems, this relay valve plays a critical role in managing brake pressure to optimize traction and prevent wheel lock-up. Its advanced engineering ensures swift and accurate responses, improving overall safety and performance during operation. The compact design allows for easy integration into existing systems, making it a practical choice for fleet maintenance. For those seeking top-quality Bendix OEM parts, Source One Parts Center is the premier choice for reliability and excellence.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Adapter Cable Included
2-Pin DIN (90°) to 2-Pin Deutsch DTM04-2P
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Exhaust Port
Dust Shield
Mounting
M8 X 1.25-6g Stud (2x)
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.04 lb
