DESCRIPTION

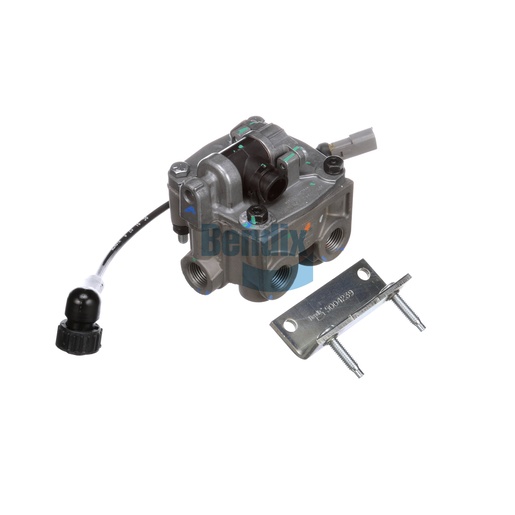

The Bendix Traction Relay is an essential part of your vehicle's ABS and stability systems, designed to enhance traction control and braking performance. This mechatronic valve is built for heavy-duty applications, ensuring reliable operation under challenging conditions. Its precise engineering allows for quick response times, helping to prevent wheel lock-up during braking, which is crucial for maintaining vehicle control in slippery conditions. The compact design facilitates easy installation, allowing it to integrate seamlessly into existing ABS systems. By using this reliable traction relay, fleet operators can improve safety and efficiency on the road. Source One Parts Center is the preferred destination for genuine Bendix OEM parts, ensuring you receive top-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Width
101.0 mm (3.98 in)
Length
116.0 mm (4.57 in)
Voltage (Nominal)
12 Volts
Height
120.0 mm (4.72 in)
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Adapter Cable Included
2-Pin DIN (90°) to 2-Pin Deutsch DT06-2S
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Delivery Port 3
Closed Port
Delivery Port 4
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.4 lb
