$419.95
$503.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

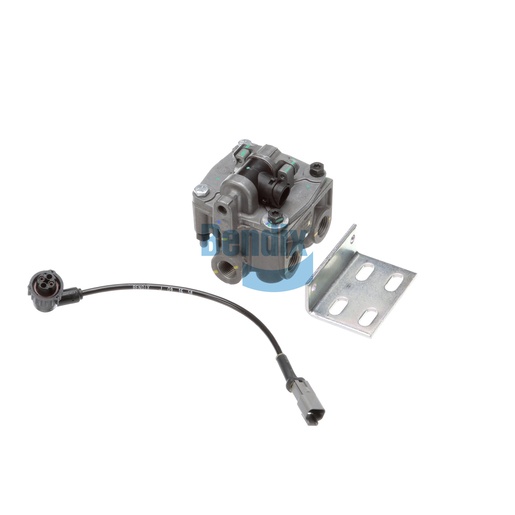

The Bendix Traction Relay is a crucial component in enhancing vehicle stability and traction control, making it an essential part of modern commercial vehicles. This advanced relay valve is designed to provide precise control of the braking system, improving safety and performance during challenging conditions. With a robust construction and a variety of ports for efficient fluid delivery, the traction relay ensures reliable operation in a range of environments. Its 12-volt nominal voltage and ability to withstand extreme temperatures make it a dependable choice for any fleet operator. When searching for genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability come standard.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.40 IN x .96 IN Slots (4x)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Adapter Cable Included
2-Pin DIN (90°) to 2-Pin Deutsch DT06-2S
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.55 lb
