$429.95
$515.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

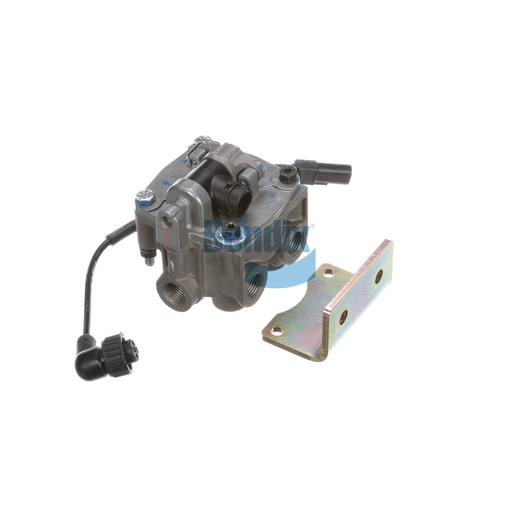

The Traction Relay from Bendix is an essential component for enhancing the performance of your commercial vehicle's anti-lock traction control system. This high-quality relay is designed to manage traction effectively, optimizing braking performance and stability in various driving conditions. With a robust design that includes multiple ports for effective air management, it ensures responsive and reliable operation. The traction relay is engineered to withstand challenging environments, making it a perfect choice for heavy-duty applications. Its connection type and precise specifications guarantee a seamless integration into your braking system. When you purchase from Source One Parts Center, you get access to genuine Bendix OEM parts that are tailored for your vehicle's needs, ensuring reliability and peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Width
101.0 mm (3.98 in)
Length
116.0 mm (4.57 in)
Voltage (Nominal)
12 Volts
Height
120.0 mm (4.72 in)
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Adapter Cable Included
2-Pin DIN (90°) to 2-Pin Delphi 15449028
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Exhaust Port
Dust Shield
Mounting
M8 X 1.25-5H Nut (2x)
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.75 lb
