DESCRIPTION

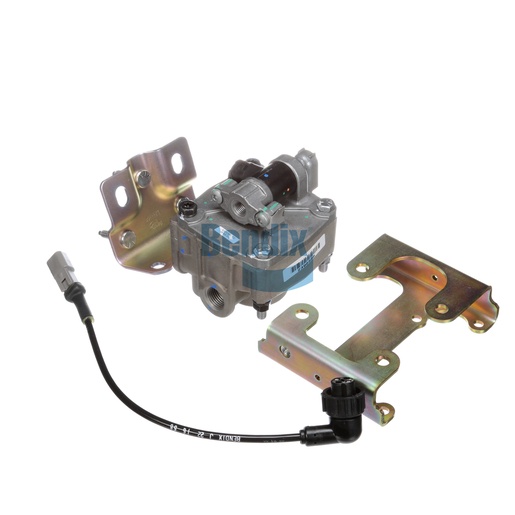

The Traction Relay is a vital component that plays a key role in enhancing vehicle stability and traction in diverse driving conditions. This advanced mechatronic valve is specifically designed for use in antilock braking systems (ABS), providing crucial support for maintaining control during acceleration and deceleration. With a body configuration that incorporates 2 supply and 4 delivery ports, this relay boasts an efficient design that ensures optimal responsiveness. Its crack pressure of 4.0 PSI enables precise modulation of brake pressure, contributing to safer driving experiences. Built to withstand extreme temperatures, from -40°F to 185°F, this relay is lightweight at just 2.2 kg (4.89 lb), making it an excellent choice for commercial vehicle maintenance. For top-quality replacements, Source One Parts Center stands out as the premier source for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Adapter Cable Included
2-Pin DIN (90°) to 2-Pin Deutsch DT06-2S
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Delivery Port 3
Closed Port
Delivery Port 4
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting Bracket Location
Multiple brackets loose in box
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
4.89 lb
