$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

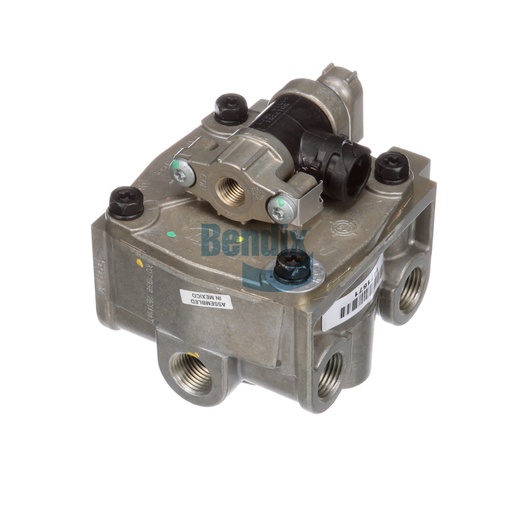

The Bendix Traction Relay is an innovative component designed to enhance the safety and stability of your commercial vehicle's braking system. This mechatronic valve plays a crucial role in the ABS and traction control systems, providing precise control over braking force during slippery conditions. Its robust construction ensures reliability and durability, even under demanding operating conditions. Easy to install and integrate with existing systems, this Traction Relay helps maintain optimal vehicle performance, contributing to safer driving experiences. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, offering a comprehensive range of high-quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.06 lb
