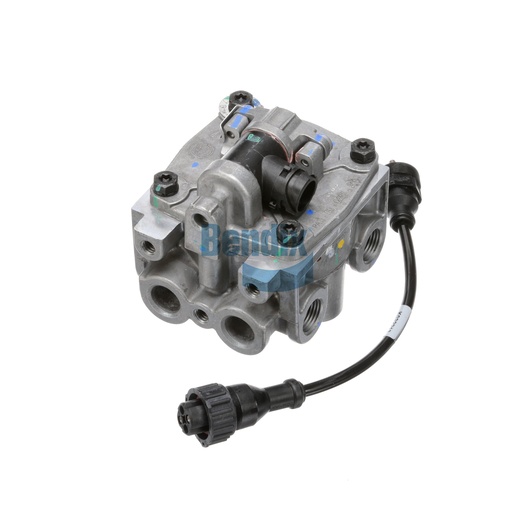

K081303
Traction Relay
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Traction Relay is a key component in enhancing vehicle stability and control, particularly in challenging driving conditions. This high-performance relay valve integrates seamlessly into ABS systems, allowing for precise modulation of brake pressure to individual wheels, thereby preventing wheel lock-up. Manufactured with high-quality materials in Mexico, it features a compact design that facilitates easy installation and maintenance. With a nominal voltage of 12 volts and a maximum operating temperature of 185°F, this relay is built to withstand the rigors of commercial use. Its technical specifications, including multiple delivery ports and a robust design, ensure reliable and efficient operation. For those who demand the best in performance and reliability, Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring you receive only the highest quality components for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Adapter Cable Included
2-Pin DIN (Straight) to 2-Pin Metric
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Delivery Port 7
Closed Port
Delivery Port 8
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.2 lb
