K084147

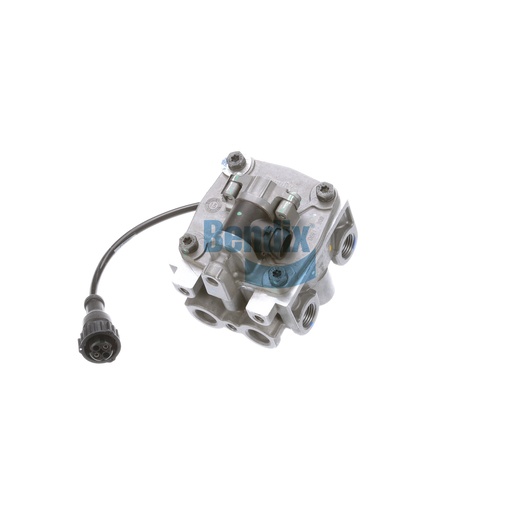

Traction Relay
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Traction Relay is an advanced component designed to enhance the safety and stability of your truck's braking system. This mechatronic valve plays a crucial role in controlling traction, providing reliable performance under a variety of conditions. Its robust construction ensures durability and functionality, making it suitable for heavy-duty applications. The precision engineering allows for seamless integration into your vehicle's braking system, ensuring optimal performance and safety. With easy installation and maintenance, this traction relay is a smart investment for fleet operators. For those seeking genuine Bendix OEM parts, Source One Parts Center is the top choice, providing high-quality products to meet your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Adapter Cable Included
2-Pin DIN (Straight) to 2-Pin Metric
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Delivery Port 7
Closed Port
Delivery Port 8
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.23 lb
