$399.95
$479.94
FINAL SALE. No returns or exchanges.

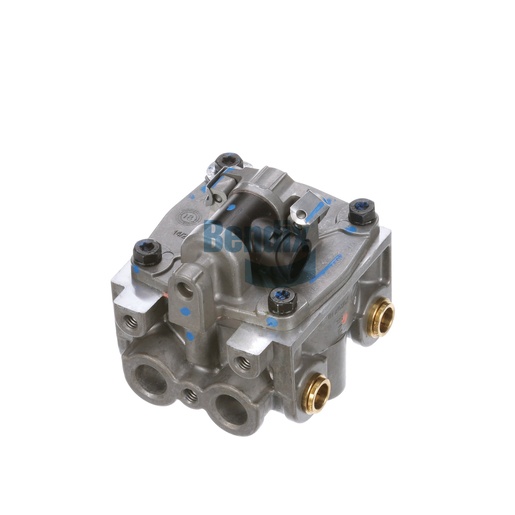

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The traction relay is a sophisticated component designed to enhance the stability and safety of commercial vehicles by effectively managing the braking system under various conditions. This part is crucial for maintaining optimal traction, especially in adverse weather or slippery road conditions. With precise engineering and robust construction, the relay ensures reliable operation, contributing to the overall safety and performance of the vehicle. Weighing only 1.5 kg, it is designed for easy installation within Bendix ABS and traction control systems. By choosing genuine Bendix parts from Source One Parts Center, you can trust in the quality and reliability of your vehicle's braking components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2 PTC
Delivery Port 2
1/2 PTC
Delivery Port 3
1/2 PTC
Delivery Port 4
1/2 PTC
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.22 lb
