$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

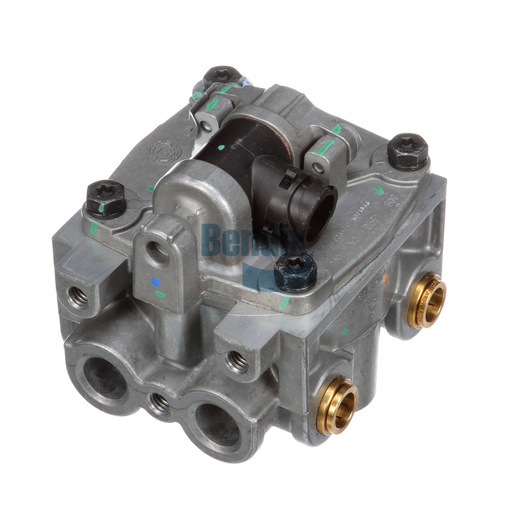

Enhance the performance of your vehicle's braking system with the Bendix Traction Relay. This advanced component is crucial for ensuring optimal traction and stability during braking, making it an essential part of your vehicle’s safety features. Designed with precision, this relay is built to withstand the rigors of commercial use while maintaining reliable operation. Its compact design allows for easy installation and integration into existing systems, ensuring that your vehicle can handle various driving conditions. For authentic Bendix OEM parts, Source One Parts Center is your go-to choice, providing high-quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2 PTC
Delivery Port 2
1/2 PTC
Delivery Port 3
1/2 PTC
Delivery Port 4
1/2 PTC
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.25 lb
