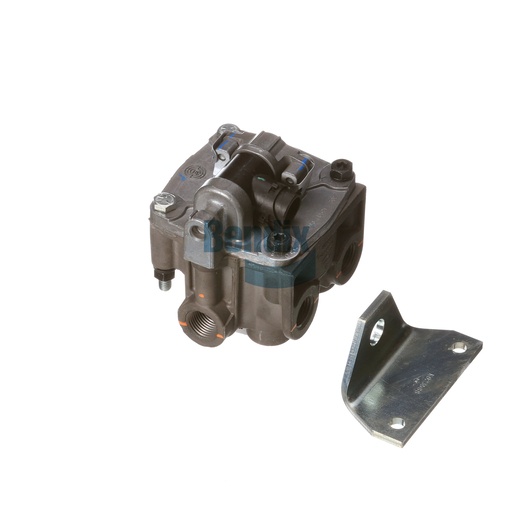

K101590
Traction Relay
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Traction Relay from Bendix is an essential component in antilock traction control systems, ensuring optimal performance and safety during challenging driving conditions. Designed for heavy-duty applications, this relay valve helps manage air flow to the brakes, preventing wheel lock-up and enhancing vehicle control. Its robust construction allows for reliable operation under intense conditions, making it suitable for commercial vehicles. This relay is vital for maintaining traction and stability, especially in adverse weather, contributing to overall road safety. For those in search of genuine Bendix parts, Source One Parts Center stands out as the best source, offering high-quality components that ensure your vehicle's performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Country of Origin
Mexico
TMC Washer
RV055
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Mounting
Ø .669 IN
Weight
3.4 lb
