$379.95
$455.94
FINAL SALE. No returns or exchanges.

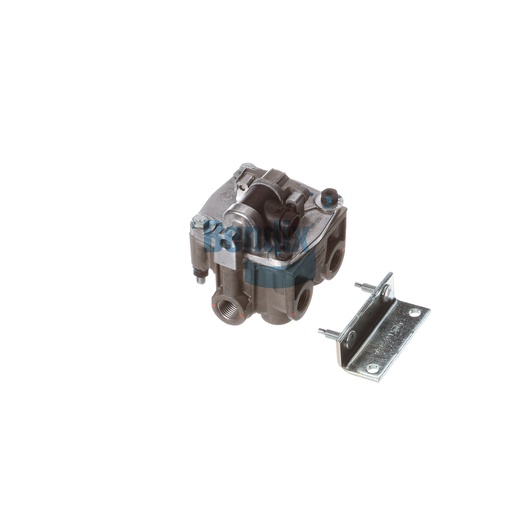

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Traction Relay is a vital component in your vehicle's ABS and traction control systems, designed to enhance vehicle stability and safety. This advanced part helps manage wheel slip during acceleration, ensuring optimal traction in various driving conditions. Built for durability and reliability, it features high-quality materials that withstand the demanding environments of commercial vehicles. Its precise engineering allows for seamless integration, making installation straightforward. Source One Parts Center is your best choice for genuine Bendix OEM parts, ensuring your vehicles are equipped with the best components for performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Height
107.0 mm (4.21 in)
Length
116.0 mm (4.57 in)
Voltage (Nominal)
12 Volts
Width
120.0 mm (4.72 in)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Below Body
Exhaust Port
Dust Shield
Mounting
M8 x 1.25-6g Stud (2x)
Country of Origin
Mexico
TMC Washer
RV055
Mounting Bracket Direction
Up
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.37 lb
