802127

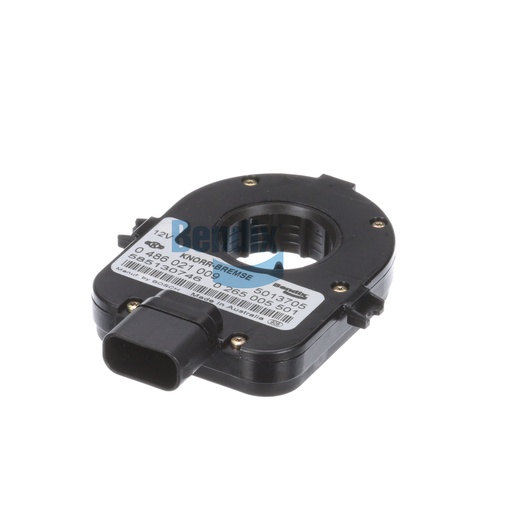

Steering Angle Sensor
Bendix

IN STOCK

Bendix

2 are currently available

Ships within 1 business day

$539.95 $647.94

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
Ensure your vehicle's stability and responsiveness with the Bendix Steering Angle Sensor, an essential component for modern commercial trucks. This sensor accurately measures the steering wheel angle, providing critical data to the vehicle’s control systems to optimize performance during acceleration, braking, and cornering. With an ingress protection rating of IP50, the sensor is designed to function reliably even in challenging environments, safeguarding it from dust and moisture. Its robust construction withstands the rigors of heavy-duty use, making it ideal for commercial applications. The sensor operates efficiently in a wide voltage range, ensuring consistent performance regardless of the load. Properly functioning steering angle sensors enhance the effectiveness of anti-lock braking systems and traction control, ultimately improving driver safety and comfort. When it comes to sourcing genuine Bendix OEM parts like this sensor, Source One Parts Center is your go-to destination, providing the highest quality parts for your commercial vehicle needs.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
015-002-029: Sensor - Steering Wheel Angle
Height
103.0 mm (4.06 in)
Current (Maximum)
170 mA
Overvoltage
18 Volts
Maximum Operating Temperature
185 °F (85 °C)
Length
20.0 mm (0.79 in)
CAN Baud Rate
250 Kilobaud
Width
72.0 mm (2.83 in)
Operating Voltage Range
8.2 VDC - 16 VDC
Harmonized System (HS) Code
854370
Connector Type
Bosch 7-Pin Connector (Male)
Cautionary Note(s)
Fastener Torque & Orientation are Critical
Country of Origin
Germany
Ingress Protection Rating
IP50
Connector Orientation
Straight
Steering Column Shaft Diameter
Ø 25.98 mm
Weight
0.09 lb
