K022680

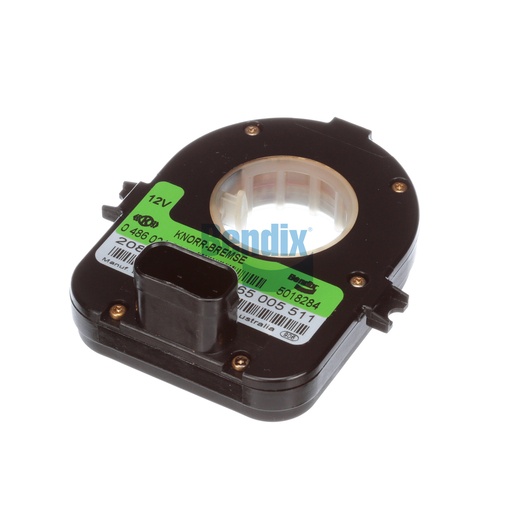

Steering Angle Sensor
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Steering Angle Sensor is a critical component designed to enhance vehicle stability and safety by providing precise steering angle data. This sensor operates within a wide voltage range and is engineered to perform optimally under various driving conditions. With a compact design and a weight of just 0.09 lb, it is easy to install and integrates seamlessly into your vehicle's stability control system. The sensor is built to withstand extreme temperatures and environmental conditions, ensuring reliability and longevity. For those committed to vehicle safety and performance, Source One Parts Center is the ideal source for genuine Bendix OEM parts, providing assurance in quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
015-002-029: Sensor - Steering Wheel Angle
Current (Maximum)
150 mA
Overvoltage
18 Volts
Maximum Operating Temperature
185 °F (85 °C)
Length
33.0 mm (1.3 in)
CAN Baud Rate
500 Kilobaud
Width
72.0 mm (2.83 in)
Operating Voltage Range
8.2 VDC - 16 VDC
Height
85.0 mm (3.35 in)
Harmonized System (HS) Code
854370
Connector Orientation
90°
Connector Type
Bosch 7-Pin Connector (Male)
Cautionary Note(s)
Fastener Torque & Orientation are Critical
Country of Origin
Germany
Ingress Protection Rating
IP50
Steering Column Shaft Diameter
Ø 24.90 mm
Weight
0.09 lb
