K072860

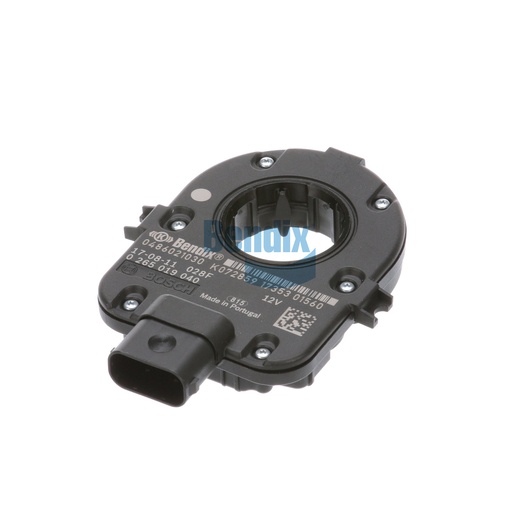

Steering Angle Sensor
Bendix

DISCONTINUED

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Bendix Steering Angle Sensor is a crucial component for enhancing the safety and performance of your vehicle's steering system. Designed to provide accurate angle measurements, this sensor ensures optimal vehicle handling and stability, especially in challenging driving conditions. With a robust design that operates effectively within a voltage range of 8 to 16 VDC, the sensor is built to withstand the rigors of commercial use. Its compact size and lightweight design make for easy installation, while the high ingress protection rating ensures that it remains functional in various environmental conditions. The sensor is engineered to perform in extreme temperatures, from -40 °F to 185 °F, guaranteeing consistent reliability. Whether you're tackling urban roads or long highways, this steering angle sensor enhances your vehicle's overall responsiveness. When it comes to sourcing genuine Bendix parts, Source One Parts Center stands out as the best option, committed to providing authentic OEM components that enhance your vehicle's performance.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
015-002-029: Sensor - Steering Wheel Angle
Height
103.0 mm (4.06 in)
Current (Maximum)
150 mA
Overvoltage
18 Volts
Maximum Operating Temperature
185 °F (85 °C)
Length
21.0 mm (0.83 in)
CAN Baud Rate
500 Kilobaud
Width
72.0 mm (2.83 in)
Operating Voltage Range
8 VDC - 16 VDC
Harmonized System (HS) Code
854370
Connector Type
Bosch 7-Pin Connector (Male)
Cautionary Note(s)
Fastener Torque & Orientation are Critical
Ingress Protection Rating
IP50
Country of Origin
Portugal
Connector Orientation
Straight
Steering Column Shaft Diameter
Ø 25.98 mm
Weight
0.11 lb
